Coating of a coarse water filter vessel
Protecting components against sea water damage.
Scope of work
Internals of new vessel protected against sea water damage using Corroglass 600 Series and Polyglass VEF. Rebate flanges to protect against crevice corrosion. Terminate coating on steel rings.
Products
Polyglass VEF
Plasmet ZF / Corrothane AP1
Substrate
Carbon steel
Internal coating system
Grit blasted internally to ISO 8501 – Cleanliness Standard SA 2 1/2. Coated internally using Corroglass 600 Series / Polyglass VEF to a minimum 1.25mm DFT. Thickness checked. Spark tested at 19Kv. Flange faces rebated and coated to prevent crevice corrosion.
External coating system
Grit blasted externally to ISO 8501-1 – Cleanliness Standard SA 2. Applied two coats of Plasmet ZF with a topcoat of Corrothane AP1.
Coating credentials
Polyglass VEF has a proven track record protecting components against sea water damage. Many projects completed by Corrocoat for use within a sea water environment are still working well after more than 25 years in service.
Photographs

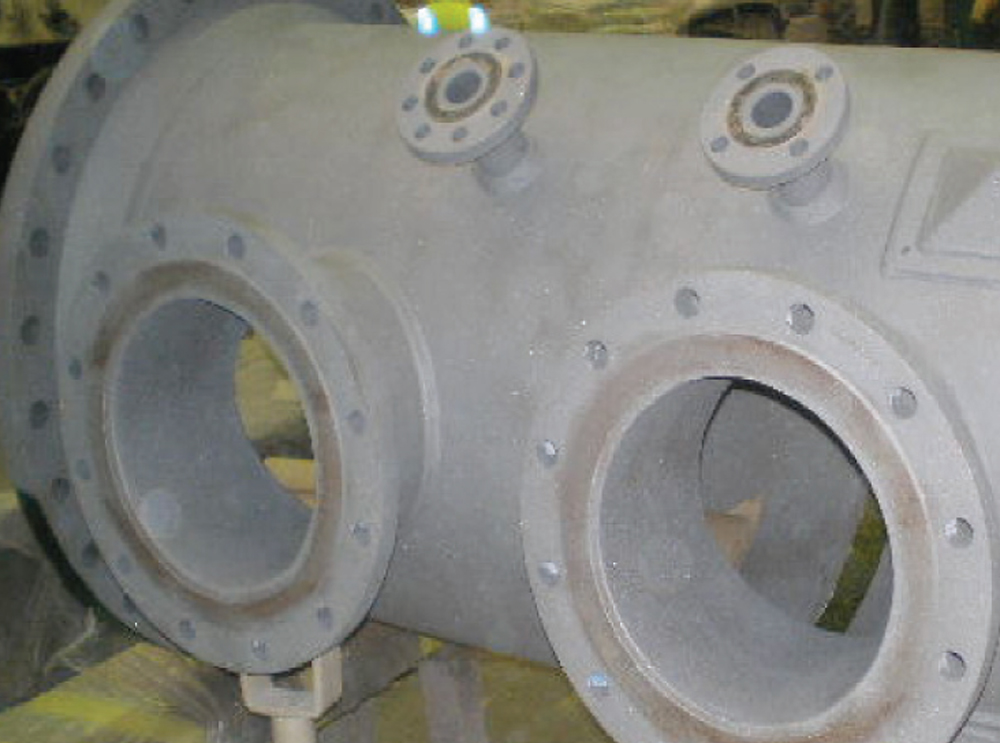

The new vessel, uncoated

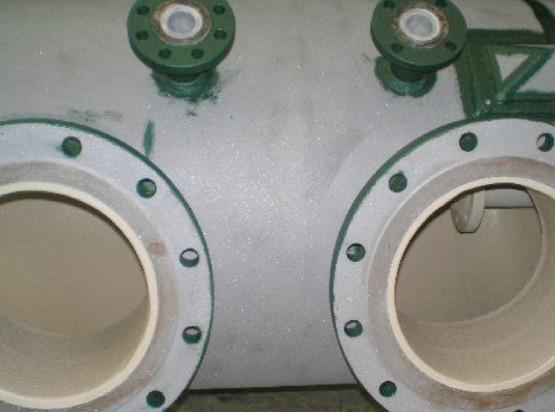

Vessel coated internally and stripe coated externally in preparation for top coat

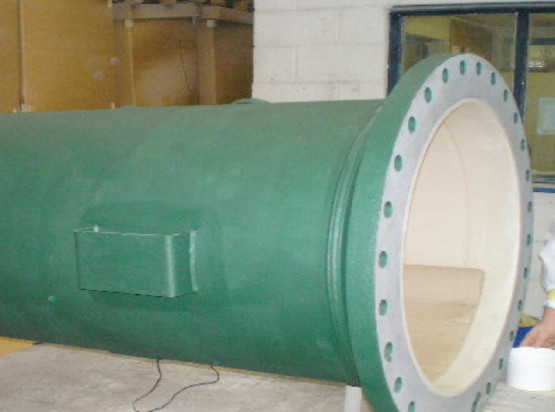

Vessel externals coated with first full coat of Plasmet ZF.
